VoIP Integration Phone Remote allows you to take control of one, many or all Cisco phones from anywhere with network connectivity.
Phone Remote is allows you to test remote site features such as conferencing, call routing and SRST. See the actual phone and see the phone screen when troubleshooting or training end users.

Key strokes sent to the phone are interpreted as if the user had pressed the key on the actual phone. Screen updates show the screen as displayed on the device

A Call Me feature allows you to configure a destination phone number, with a single click the remote device will call you on speaker phone.

Key Stroke Macros allow users to record or enter a series of key strokes which are sent to the phone as a group. Common functions such as Call Info, Phone Reset and Factory Erase are easily accessed with pre-programmed macro buttons.

A Capture feature grabs a screenshot of the Cisco phone which is saved to a jpg file as well as copied to the clipboard, making development of training materials with actual screen images quick and easy.



Do you already own Phone Remote ?

Download the 4.1 Upgrade

VoIP Integration Phone Remote allows you to take control of a Cisco phone from anywhere with network connectivity.
Key strokes are sent to the phone which are interpreted as if the user had pressed the key on the actual phone. Screen updates show the screen as displayed on the device.

Choose from two methods to select and control a phone.

  • With a Call Manager /Express End User that has device association you can control the phone via its IP address.
  • With a Call Manager Admin user that has AXL permissions search right from within Phone Remote for a phone using it’s Extension, Description or MAC address. Call Manager Express XML User can search by Extension, or MAC Address.

A Call Me feature allows you to configure a destination phone number, with a single click the remote device will call you on speaker phone.
A Capture feature grabs a screenshot of the Cisco phone which is saved to a jpg file as well as copied to the clipboard, making development of training materials with actual screen images quick and easy.
This utility is great for troubleshooting remote site features like conferencing and call routing. Help desk users enjoy that they can control the actual phone and see the phone screen when troubleshooting or training end users.
Per User Licensing is based on the individual installation on a single workstation, individual user license is tied to a single computer however hardware activation can be easily deactivated to allow activation on another computer. Per Cluster licensing allows unlimited users tied to your cluster(s). Server Licensing is perfect for the NOC environments where multiple users access a single terminal server. Integrator Licensing which allows for unlimited users and clusters for use within your organization only.

  • Enhanced Look and Feel HTTP and CTI control, allows faster keystrokes and
  • Control in any situation. Even during CTL/ITL file or Security by Default Issues.
  • New Macro Editor with Unlimited Macros
  • View CDR records directly from Phone Remote (CUCM)
  • Edit Basic CUCM Settings such as Device Pool, CSS, MRGL and more (CUCM)
  • Compare two devices to identify any CUCM configuration differences
  • Ping & Trace utility with various codec emulations
  • Faster Screen Refresh
  • Support 69xx, 89xx and 99xx model phones
  • Enhanced search capabilities & Call Manager Drill Down
  • Multi Cluster configuration
  • Improved Keyboard interaction when navigating options
  • Ability to use keyboard to send keys to phone 0-9,*,#, F1-F5 (soft keys), Ctrl-1 through Ctrl 8 (Line Buttons), Enter = Speaker or Navigation Select
  • Automatically connects upon startup if cluster information is saved (puts you right on search)
  • User configurable Screen updates (down to 2 seconds)
  • Web Link to Phone Web page from Phone Remote Screen
  • Web Link to CCM Admin device settings page for connected phone
  • Device Information from within Phone Remote (Serial Number, Hardware and Software Version, Active CM, Standby CM, timezone, etc)
  • Network Information from within Phone Remote (IP, Subnet, Gateway, TFTP, VLAN's, Network port speeds, etc )
  • Monitoring of RTP Stream call stats, see packet loss, jitter and call MOS, codec's used, etc
  • Ability to search for an Extension Mobility profile and control the phone where that profile is logged in
  • Support for Call Manager Express / UC 500


Phone Remote is offered under several licensing models.

Per User Licensing is based on the individual installation on a single workstation, while the single user license is tied to a particular computer license deactivation is quick and easy allowing you to move your license to computer.

Per Cluster Licensing allows unlimited installations of Phone Remote and is tied to your cluster(s).

Server Licensing is perfect for the NOC environments where multiple users access a single terminal server.

Enterprise Licensing allows for unlimited users and clusters for use within your organization only.

FEATURE
Matrix
FREE
Student / Lab
SINGLE
User
CLUSTER
License
SERVER
License
INSTALLER
License
  FREE $499 Call Call Call
Operating System XP, Vista, 7 & 8 XP, Vista, 7 & 8 Any 2003,2008,2012 Any
Licensed Installations 1 1 Unlimited 1 Unlimited
Remote Desktop Sessions 1 1 Unlimited # Purchased Unlimited
CME Support
CME Phone Limit 5 Phones Unlimited Unlimited Unlimited Unlimited
CUCM Support
Basic Phone Control
Advance Phone Control
Send Keystroke Macro
Save Unlimited Custom Macro
Extension Mobility Login/out
Compare CUCM Settings
Edit CUCM Settings
View CUCM Call Records
View & Capture Screens
Ping & Trace
Quick Easy Device Search

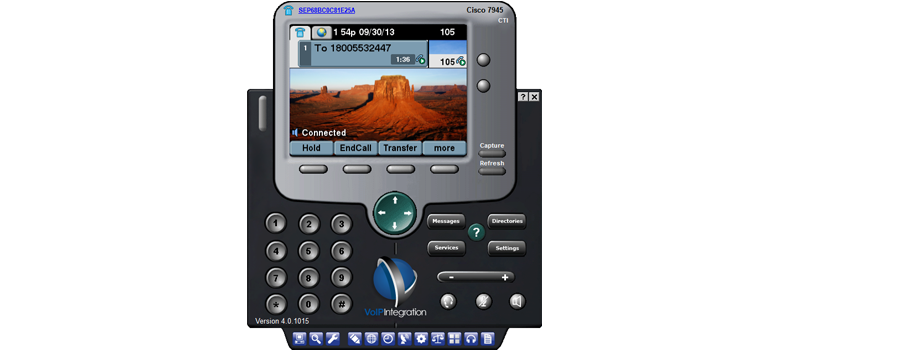

Phone Control

See the Phone screen, press buttons Remotely.

Perfect for Remote Troubleshooting, Dial-Plan Validation, Help Desk and End User Training.

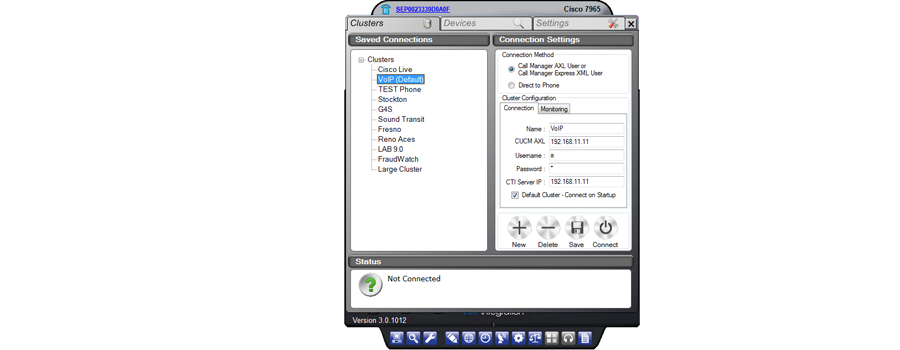

Clusters

Save multiple cluster configurations
to be able to easily switch between
multiple CUCM clusters

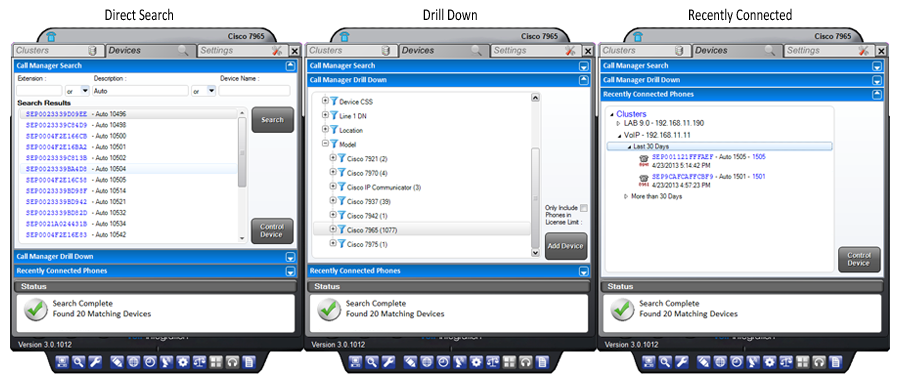

Device Search

The CUCM search allows you to go straight to the phone by extension, device name or description.

A device tree allows you to drill down through the cluster to find the phone you want to connect to.

Recently connected devices store the last 30 phones you connected to in each cluster.

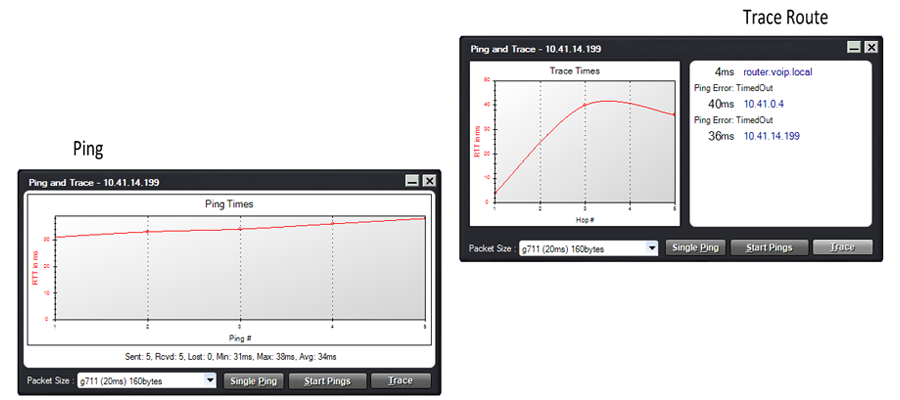

Ping & Trace

A ping and trace tool can help you to
verify network configurations and track
down routing problems.

Device Comparison

Compare the settings of two phones
to assist in finding configuration
errors.

View every setting or just those
that are different.

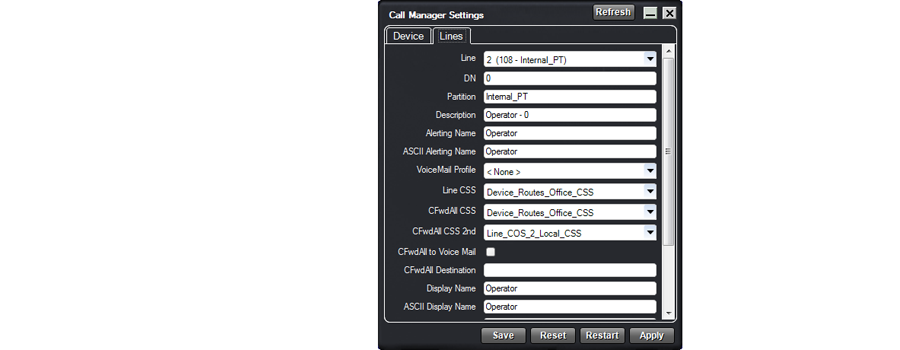

Basic Settings Changes

Update the most common settings
without having use the CUCM
webpage.

Text Messaging

Send text messages to one or
multiple phones at a time.

Call Detail Records

View the call history from CDR
directly in Phone Remote.

Supported Phone Models :

  • 794x, 796x, 797x, 7921-7926, 69xx, 89xx, 99xx, 7937 (View and Control) IP Communicator & Cius (Remote Control only)



System Requirements:

  • Call Manager 3.x to Call Manager 9.x, Call Manager Express
  • Searching for phone within Phone Remote requires CM 5.x +/CM Express 4.0+
  • Windows XP, Vista, 7, 8, 2000, 2003, 2008 with Microsoft Dot Net 4.0
  • End User phone credentials or Call Manager administrator credentials
Need a formal quote for your procurement process ?


The process is quick and easy!

Simply place the items you need the quote for into the shopping cart.
Then and at the checkout select the Generate Quote Request.
Alternatively you can email Sales@VoIPIntegration.com or give us a call at +1-925-513-4400 to discuss your requirements.
